網站首頁 > BOSERL減速機 > 同軸斜齒輪減速馬達 > RF系列齒輪減速馬達

RF28減速機詳細信息

prevnext

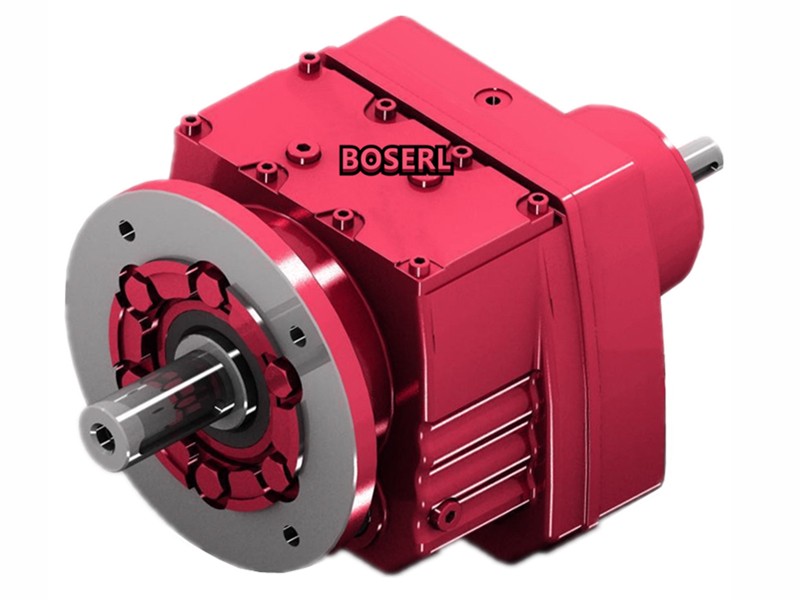

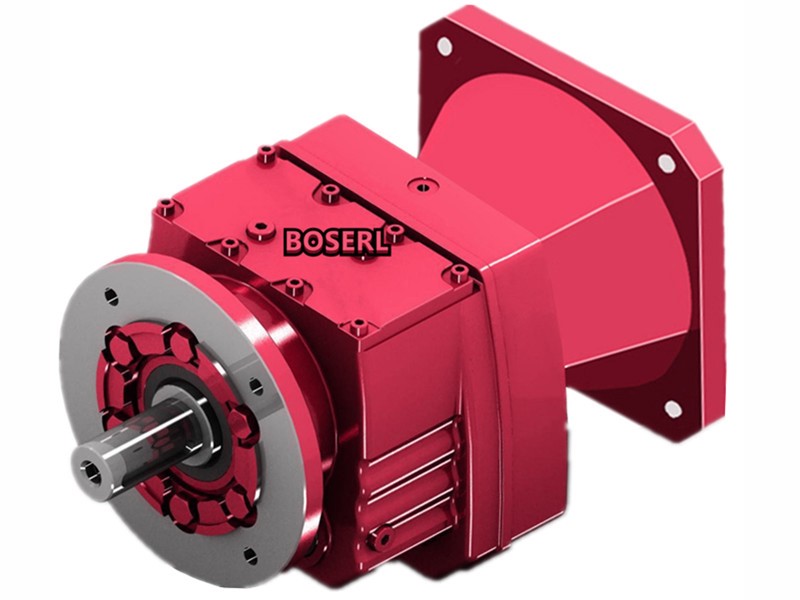

RF28減速機

訂購熱線：13360667204
  1. 詳細信息

RF28減速機傳動比計算：齒輪減速馬達

傳送帶參數：齒輪直徑65，傳送1.6噸，傳送一分鐘46米

46米÷（0.065齒輪直徑X3.14）=225.4轉每分鐘

1.6噸換算成N=16000N

16000×0.0325齒輪半徑×0.06摩擦系數=31.2N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍31.2×2=62.4N.m

電機轉數1400÷輸出轉數225.4=6.21比

62.4N.m輸出扭矩÷6.21比=10.04N.m電機扭矩

10.04N.m電機扭矩換算成功率1.59KW左右

對應的RF28減速機選型參數：

型號：RF28-BEJ2.2KW

減速比：6.59

輸出轉數：216轉每分鐘

輸出扭矩：97N.m

安全系數：1.1

RF28減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機


RF28立式硬齒面斜齒輪減速機型號：


RF27系列減速機參數大全：同軸斜齒輪減速電機

RF27減速機配0.12KW電機參數

型號功率轉數扭矩安全系數
RF27-Y0.12KW0.12KW10.0rpm112N.m1.15
RF27-Y0.12KW0.12KW11.0rpm103N.m1.25
RF27-Y0.12KW0.12KW13.0rpm88N.m1.50
RF27-Y0.12KW0.12KW15.0rpm76N.m1.70
RF27-Y0.12KW0.12KW16.0rpm70N.m1.85
RF27-Y0.12KW0.12KW19.0rpm62N.m2.10
RF27-Y0.12KW0.12KW20.0rpm58N.m2.20
RF27-Y0.12KW0.12KW23.0rpm51N.m2.60
RF27-Y0.12KW0.12KW25.0rpm46N.m2.80
RF27-Y0.12KW0.12KW29.0rpm40N.m3.20
RF27-Y0.12KW0.12KW31.0rpm37N.m3.50

RF27減速機配0.18KW電機參數

型號功率轉數扭矩安全系數
RF27-Y0.18KW0.18KW11.0rpm161N.m0.80
RF27-Y0.18KW0.18KW13.0rpm137N.m0.95
RF27-Y0.18KW0.18KW15.0rpm118N.m1.10
RF27-Y0.18KW0.18KW16.0rpm110N.m1.20
RF27-Y0.18KW0.18KW18.0rpm96N.m1.35
RF27-Y0.18KW0.18KW19.0rpm90N.m1.45
RF27-Y0.18KW0.18KW22.0rpm80N.m1.65
RF27-Y0.18KW0.18KW24.0rpm73N.m1.80
RF27-Y0.18KW0.18KW27.0rpm63N.m2.10
RF27-Y0.18KW0.18KW29.0rpm58N.m2.20
RF27-Y0.18KW0.18KW34.0rpm51N.m2.50
RF27-Y0.18KW0.18KW36.0rpm48N.m2.70
RF27-Y0.18KW0.18KW41.0rpm42N.m3.10
RF27-Y0.18KW0.18KW46.0rpm38N.m3.50
RF27-Y0.18KW0.18KW54.0rpm32N.m4.10
RF27-Y0.18KW0.18KW47.0rpm37N.m3.50
RF27-Y0.18KW0.18KW51.0rpm34N.m3.80
RF27-Y0.18KW0.18KW59.0rpm29N.m4.50
RF27-Y0.18KW0.18KW68.0rpm25N.m5.20
RF27-Y0.18KW0.18KW73.0rpm24N.m5.50
RF27-Y0.18KW0.18KW84.0rpm20N.m6.40
RF27-Y0.18KW0.18KW99.0rpm17N.m7.50

RF27減速機配0.25KW電機參數

型號功率轉數扭矩安全系數
RF27-Y0.25KW0.25KW15.0rpm156N.m0.85
RF27-Y0.25KW0.25KW18.0rpm136N.m0.95
RF27-Y0.25KW0.25KW19.0rpm128N.m1.00
RF27-Y0.25KW0.25KW21.0rpm113N.m1.15
RF27-Y0.25KW0.25KW23.0rpm103N.m1.25
RF27-Y0.25KW0.25KW27.0rpm88N.m1.45
RF27-Y0.25KW0.25KW29.0rpm82N.m1.60
RF27-Y0.25KW0.25KW33.0rpm72N.m1.80
RF27-Y0.25KW0.25KW35.0rpm68N.m1.90
RF27-Y0.25KW0.25KW40.0rpm60N.m2.20
RF27-Y0.25KW0.25KW45.0rpm53N.m2.50
RF27-Y0.25KW0.25KW53.0rpm45N.m2.90
RF27-Y0.25KW0.25KW46.0rpm52N.m2.50
RF27-Y0.25KW0.25KW50.0rpm48N.m2.70
RF27-Y0.25KW0.25KW58.0rpm41N.m3.20
RF27-Y0.25KW0.25KW67.0rpm36N.m3.70
RF27-Y0.25KW0.25KW72.0rpm33N.m3.90
RF27-Y0.25KW0.25KW83.0rpm29N.m4.50
RF27-Y0.25KW0.25KW98.0rpm24N.m5.30
RF27-Y0.25KW0.25KW110rpm22N.m5.90
RF27-Y0.25KW0.25KW128rpm19N.m6.60
RF27-Y0.25KW0.25KW138rpm17N.m7.00
RF27-Y0.25KW0.25KW159rpm15N.m7.70
RF27-Y0.25KW0.25KW170rpm14N.m8.00
RF27-Y0.25KW0.25KW197rpm12N.m8.80
RF27-Y0.25KW0.25KW232rpm10N.m9.60
RF27-Y0.25KW0.25KW260rpm9.2N.m10.0
RF27-Y0.25KW0.25KW304rpm7.8N.m11.0
RF27-Y0.25KW0.25KW325rpm7.3N.m12.0
RF27-Y0.25KW0.25KW386rpm6.2N.m13.0

RF27減速機配0.37KW電機參數

型號功率轉數扭矩安全系數
RF27-Y0.37KW0.37KW23.0rpm157N.m0.85
RF27-Y0.37KW0.37KW25.0rpm143N.m0.90
RF27-Y0.37KW0.37KW29.0rpm123N.m1.05
RF27-Y0.37KW0.37KW31.0rpm115N.m1.15
RF27-Y0.37KW0.37KW35.0rpm100N.m1.30
RF27-Y0.37KW0.37KW38.0rpm94N.m1.40
RF27-Y0.37KW0.37KW42.0rpm83N.m1.55
RF27-Y0.37KW0.37KW48.0rpm74N.m1.75
RF27-Y0.37KW0.37KW56.0rpm63N.m2.10
RF27-Y0.37KW0.37KW49.0rpm73N.m1.80
R27F-Y0.37KW0.37KW53.0rpm67N.m1.95
RF27-Y0.37KW0.37KW62.0rpm57N.m2.30
RF27-Y0.37KW0.37KW71.0rpm50N.m2.60
RF27-Y0.37KW0.37KW76.0rpm46N.m2.80
RF27-Y0.37KW0.37KW88.0rpm40N.m3.20
RF27-Y0.37KW0.37KW104rpm34N.m3.80

RF27減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
RF27-Y0.55KW0.55KW35.0rpm149N.m0.85
RF27-Y0.55KW0.55KW38.0rpm140N.m0.95
RF27-Y0.55KW0.55KW42.0rpm124N.m1.05
RF27-Y0.55KW0.55KW48.0rpm110N.m1.20
RF27-Y0.55KW0.55KW56.0rpm93N.m1.40
RF27-Y0.55KW0.55KW62.0rpm85N.m1.55
RF27-Y0.55KW0.55KW71.0rpm74N.m1.75
RF27-Y0.55KW0.55KW76.0rpm69N.m1.90
RF27-Y0.55KW0.55KW88.0rpm60N.m2.20
RF27-Y0.55KW0.55KW104rpm50N.m2.60
RF27-Y0.55KW0.55KW116rpm45N.m2.90
RF27-Y0.55KW0.55KW136rpm38N.m3.20
RF27-Y0.55KW0.55KW147rpm36N.m3.40
RF27-Y0.55KW0.55KW169rpm31N.m3.70
RF27-Y0.55KW0.55KW181rpm29N.m3.90
RF27-Y0.55KW0.55KW209rpm25N.m4.20
RF27-Y0.55KW0.55KW246rpm21N.m4.60
RF27-Y0.55KW0.55KW276rpm19N.m5.00
RF27-Y0.55KW0.55KW323rpm16N.m5.30
RF27-Y0.55KW0.55KW345rpm15N.m5.60
RF27-Y0.55KW0.55KW410rpm13N.m6.20

RF27減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
RF27-Y0.75KW0.75KW50.0rpm144N.m0.90
RF27-Y0.75KW0.75KW59.0rpm122N.m1.05
RF27-Y0.75KW0.75KW64.0rpm111N.m1.15
RF27-Y0.75KW0.75KW74.0rpm97N.m1.35
RF27-Y0.75KW0.75KW79.0rpm90N.m1.45
RF27-Y0.75KW0.75KW92.0rpm78N.m1.65
RF27-Y0.75KW0.75KW108rpm66N.m1.95
RF27-Y0.75KW0.75KW121rpm59N.m2.20
RF27-Y0.75KW0.75KW142rpm50N.m2.40
RF27-Y0.75KW0.75KW152rpm47N.m2.60
RF27-Y0.75KW0.75KW176rpm41N.m2.80
RF27-Y0.75KW0.75KW188rpm38N.m2.90
RF27-Y0.75KW0.75KW218rpm33N.m3.20
RF27-Y0.75KW0.75KW256rpm28N.m3.60
RF27-Y0.75KW0.75KW287rpm25N.m3.80

RF27減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
RF27-Y1.1KW1.1KW73.0rpm143N.m0.90
RF27-Y1.1KW1.1KW79.0rpm134N.m0.95
RF27-Y1.1KW1.1KW91.0rpm116N.m1.10
RF27-Y1.1KW1.1KW107rpm98N.m1.30
RF27-Y1.1KW1.1KW120rpm88N.m1.45
RF27-Y1.1KW1.1KW140rpm75N.m1.65
RF27-Y1.1KW1.1KW151rpm70N.m1.75
RF27-Y1.1KW1.1KW174rpm60N.m1.90
RF27-Y1.1KW1.1KW186rpm56N.m2.00
RF27-Y1.1KW1.1KW215rpm49N.m2.20
RF27-Y1.1KW1.1KW254rpm41N.m2.40
RF27-Y1.1KW1.1KW284rpm37N.m2.60
RF27-Y1.1KW1.1KW332rpm32N.m2.80
RF27-Y1.1KW1.1KW355rpm30N.m2.90
RF27-Y1.1KW1.1KW421rpm25N.m3.20

RF27減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
RF27-Y1.5KW1.5KW91.0rpm157N.m0.85
RF27-Y1.5KW1.5KW108rpm133N.m1.00
RF27-Y1.5KW1.5KW121rpm119N.m1.10
RF27-Y1.5KW1.5KW141rpm101N.m1.20
RF27-Y1.5KW1.5KW175rpm82N.m1.40
RF27-Y1.5KW1.5KW188rpm76N.m1.45
RF27-Y1.5KW1.5KW217rpm66N.m1.60
RF27-Y1.5KW1.5KW255rpm56N.m1.75
RF27-Y1.5KW1.5KW286rpm50N.m1.90
RF27-Y1.5KW1.5KW335rpm43N.m2.00
RF27-Y1.5KW1.5KW358rpm40N.m2.10
RF27-Y1.5KW1.5KW424rpm34N.m2.30

RF27減速機配2.2KW電機參數

型號功率轉數扭矩安全系數
RF27-Y2.2KW2.2KW141rpm149N.m0.80
RF27-Y2.2KW2.2KW216rpm97N.m1.10
RF27-Y2.2KW2.2KW254rpm83N.m1.20
RF27-Y2.2KW2.2KW285rpm74N.m1.30
RF27-Y2.2KW2.2KW334rpm63N.m1.40
RF27-Y2.2KW2.2KW356rpm59N.m1.45
RF27-Y2.2KW2.2KW423rpm50N.m1.60

RF27減速機配3KW電機參數

型號功率轉數扭矩安全系數
RF27-Y3KW3KW260rpm110N.m0.90
RF27-Y3KW3KW291rpm98N.m0.95
RF27-Y3KW3KW341rpm84N.m1.05
RF27-Y3KW3KW364rpm79N.m1.10
RF27-Y3KW3KW432rpm66N.m1.20

RF28減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R28減速機

關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達

RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機

RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:  RF28減速機 RF27立式硬齒面斜齒輪減速機 RF27系列減速機 RF27減速機傳動比 RF27減速機選型參數 RF27減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
RF28減速機CAD三維圖紙下載 點擊下載
RF28減速機選型參數下載 點擊下載
